TASCAM US-1x2HR

TASCAM US-1x2HR

TASCAM US-1x2HR

  • Pengirim: Bliaudio-spr
  • Asal Pengiriman: Jakarta Barat, DKI Jakarta
  • Kode Produk: TASCAM US-1x2HR
  • Tersedia: Dalam Stok
  • Rp 1.999.000

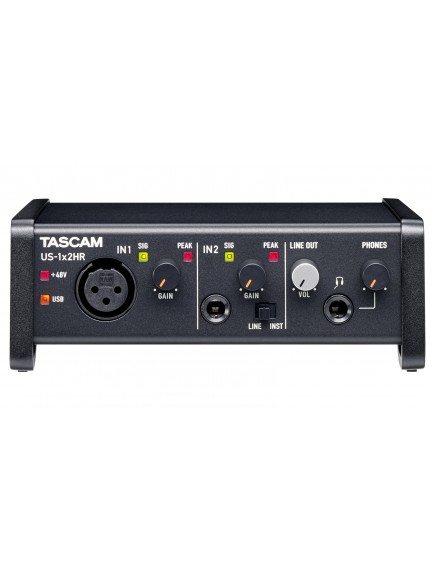

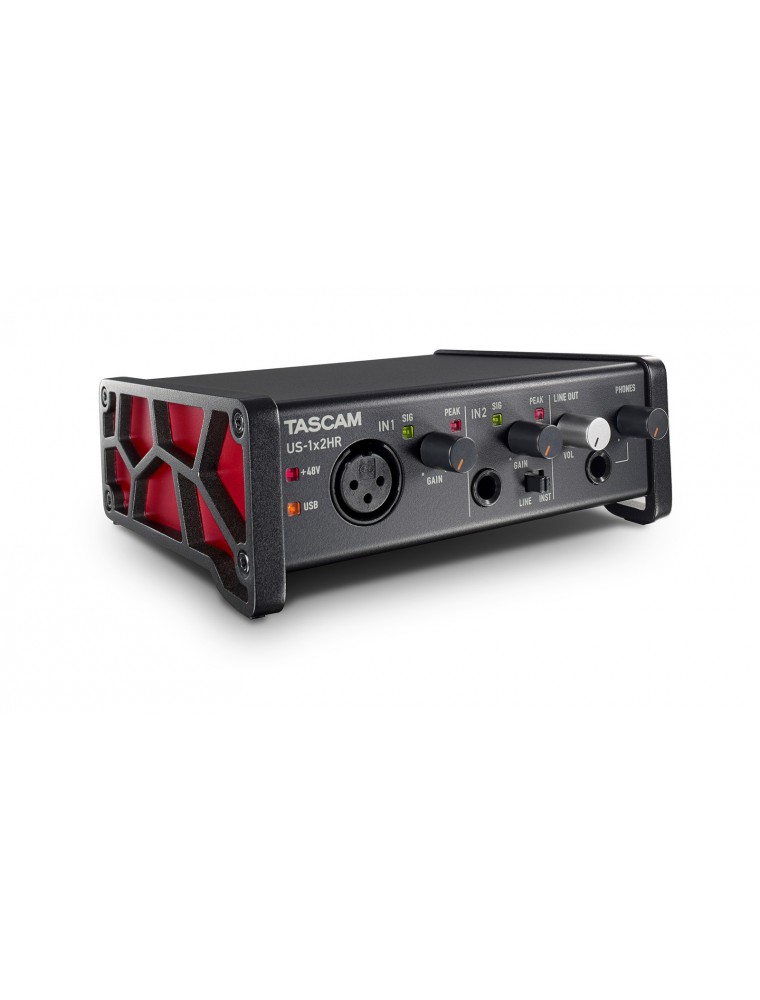

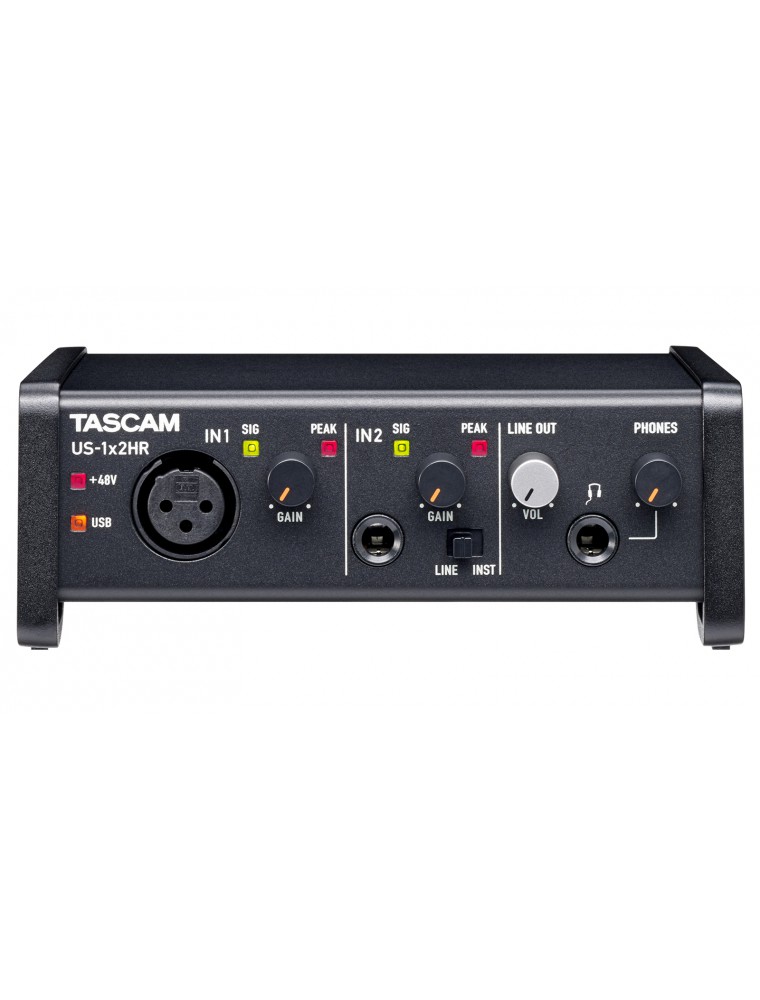

1 XLR mic input and 1 TRS line/guitar input audio interface with 192 kHz support and USB-C bus power connection. The included loopback function and OBS support makes this interface an excellent choice for podcasts and live streaming. The new US-1x2HR offers simple and intuitive operation, sophisticated looks, a rich assortment of software bundles, and improved audio performance, thanks to the newly enhanced audio circuit.




Spec description

Sampling frequency 44.1k/48k/88.2k/96k/176.4k/192k Hz
Quantization bit rate 24bit
Analog audio inputs
MIC IN (IN 1)
Connector XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance 2.4k ohms
Maximum input level
(GAIN:MIN)
+9dBu (2.183Vrms)
Gain 58dB
LINE/INST IN(IN 2)
LINE IN
Connector 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
* When set to "LINE" at LINE/INST switch
Input impedance 10k ohms
Maximum input level
(GAIN:MIN)
+20dBu(7.75Vrms)
Gain 45dB
INST IN
Connector 6.3mm(1/4") TS-jack(T:HOT, S:GND), UNBALANCED
* When set to "INST" at LINE/INST switch
Input impedance 1M ohms or more
Maximum input level
(GAIN:MIN)
+3dBV(1.1425Vrms)
Gain 45dB

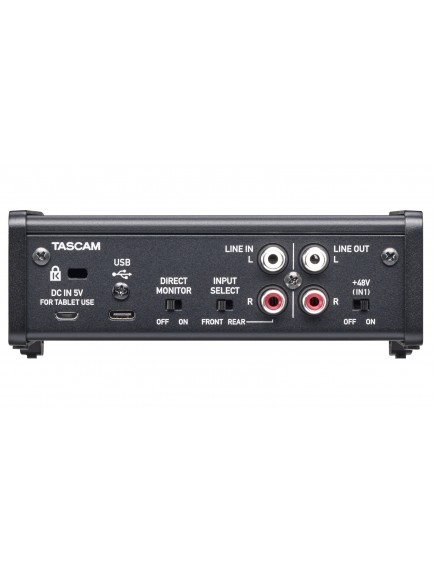

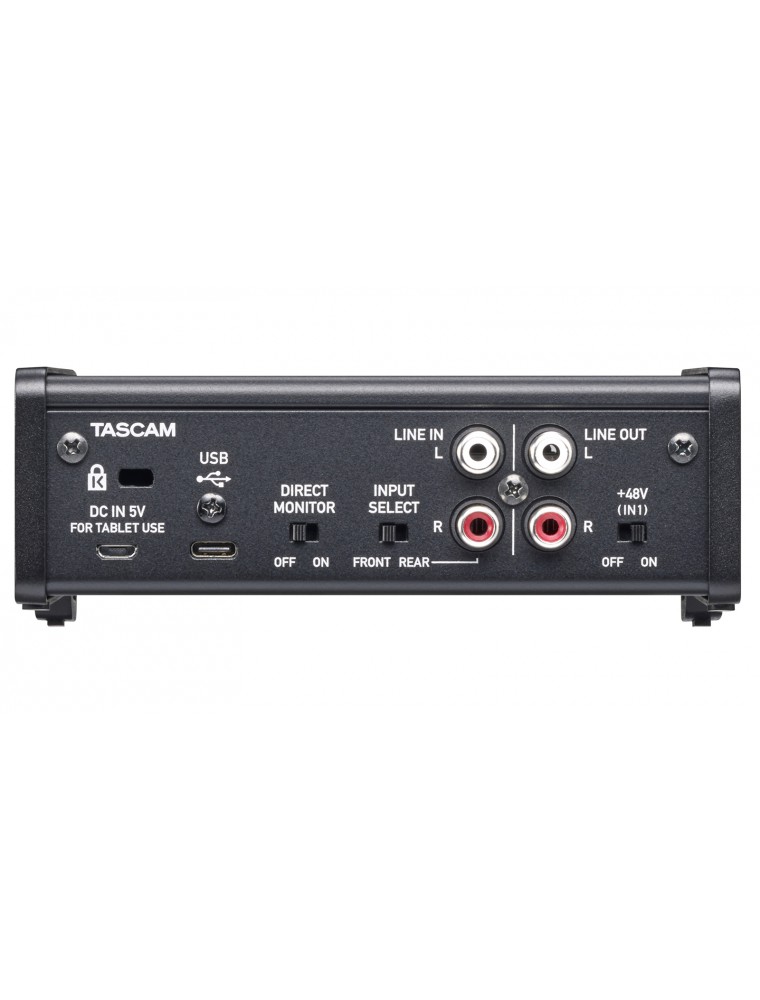

LINE L/R IN
Connector RCA pin-jack, UNBALANCED
Input impedance 10k ohms
Maximum input level +6dBV(1.9953Vrms)
Analog audio outputs
LINE OUT
Connector RCA pin-jack, UNBALANCED
Output impedance 100 ohms
Maximum output level +6dBV (1.995Vrms)
PHONES
Connector 6.3mm(1/4") stereo phone jack
Maximum output level 18mW+18mW or more
(THD+N 0.1% or less, 32ohms loaded)
Control IN / OUT
USB
Connector USB Type-C
Format USB2.0 HIGH SPEED (480Mbps)
DC IN 5V
Connector USB Micro B type
Power
When connected PC USB bus powered
When connected iOS USB power adapter (that can supply 5V and a current of at least 700mA)*1
External battery pack (that can supply 5V and a current of at least 700 mA)*2

*1 We strongly recommend using TASCAM PS-P520E AC adapter or the USB power adapter included with the iPad/iPhone. No USB power adapter is included with an iPod touch. To use it with an iPod touch, purchase a genuine Apple USB power adapter (that can supply 5V and a current of at least 700mA) separately.
*2 We strongly recommend using a TASCAM BP-6AA external battery pack. If using another external battery pack or mobile battery, purchase one that can supply 5V and a current of at least 700mA.
Power consumption 1.8W
Dimensions 146(W) × 55(H) × 120(D)mm (including protrusions)
Weight 623g
Operating temperature 5 to 35°C
Accessories USB cable (Type-A to Type-C), Set of DAW software installation guides, Set of DAW plug-in software installation guides, Owner's Manual (including warranty)



Audio performance

Mic amp EIN (equivalent input noise) -128dBu or less (150ohm termination with gain knob at MAX)
Frequency response
MIC IN 1
44.1k/48k Hz 20Hz to 20kHz, +0dB/-0.4dB(JEITA)
88.2k/96k Hz 20Hz to 40kHz, +0dB/-0.4dB(JEITA)
LINE IN 2
44.1k/48k Hz 20Hz to 20kHz, +0dB/-0.3dB(JEITA)
88.2k/96k Hz 20Hz to 40kHz, +0dB/-0.3dB(JEITA)
LINE OUT
44.1k/48k Hz 20Hz to 20kHz, +0.2dB/-0.4dB(JEITA)
88.2k/96k Hz 20Hz to 40kHz, +0.2dB/-0.4dB(JEITA)
THD + N 0.0013% (MIC IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF)
0.0027% (LINE IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF)
0.0015% (LINE OUT, 1kHz sine wave, -4dBFS input, MONITOR knob at maximum, 20kHz SPCL LPF)
S/N ratio 109dB (MIC IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight)
105dB (LINE IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight)
110dB (LINE OUT, MONITOR knob at maximum, 20kHz SPCL LPF+A-Weight)
Crosstalk 95dB or more (MIC/LINE IN to LINE OUT, 1kHz sine wave, GAIN knob at minimum)



Computer system requirements

Windows
Compatible computers Windows computer with a USB 2.0 (or higher) port
CPU type/speed 2GHz or faster dual core processor (x86)
Memory 2GB or more
Driver ASIO ASIO2.0, WDM
Mac
Compatible computers Mac with a USB 2.0 (or higher) port
CPU type/speed 2GHz or faster dual core processor
Memory 2GB or more
Driver Core Audio
iOS/iPadOS divice
Driver Core Audio
* To connect an iOS device that has a Lightning connector, a genuine Apple Lightning to USB Camera Adapter (sold separately) is necessary.



Supported OS'

Windows

Windows 10 (October 2020 Update) , Windows 8.1 , Windows 7

Mac

macOS Big Sur , macOS Catalina , macOS Mojave , macOS High Sierra (10.13)

iOS

iPadOS 14 , iOS 14 , iPadOS , iOS 13 , iOS 12
