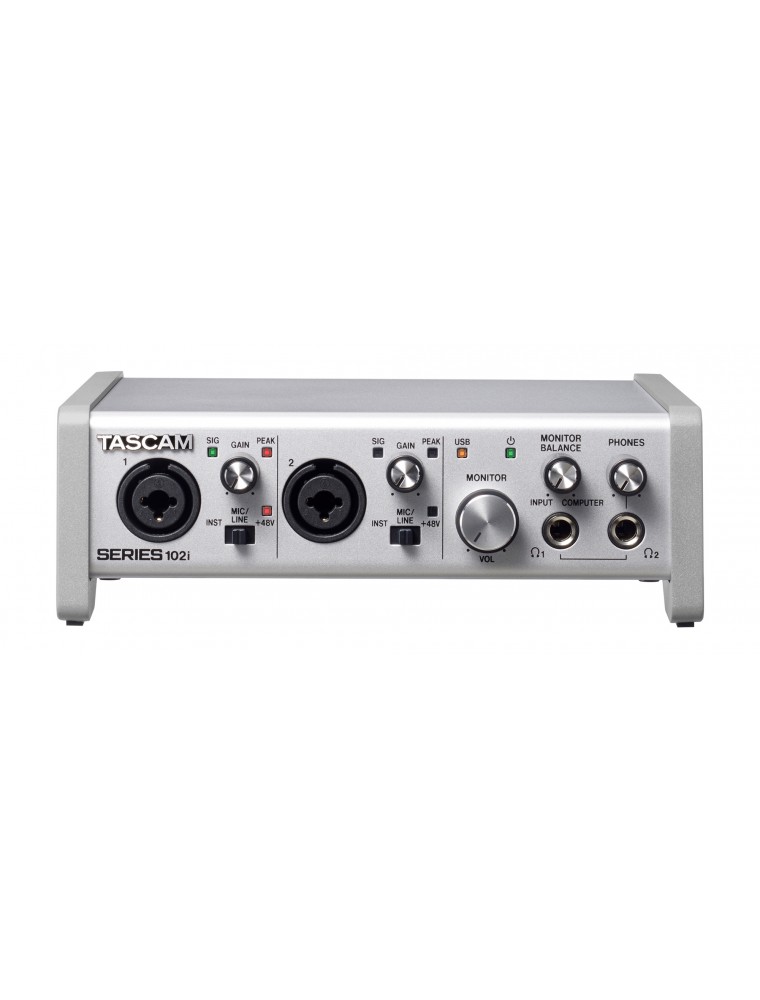

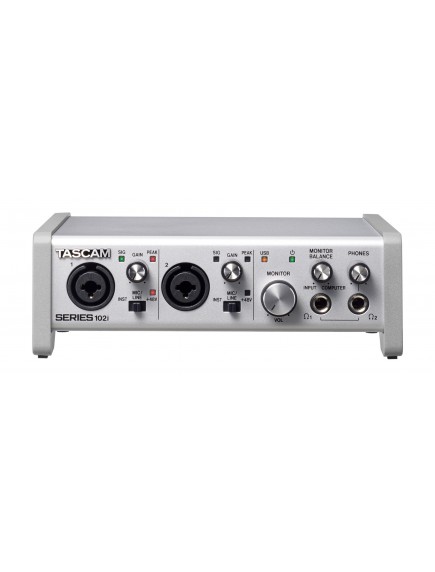

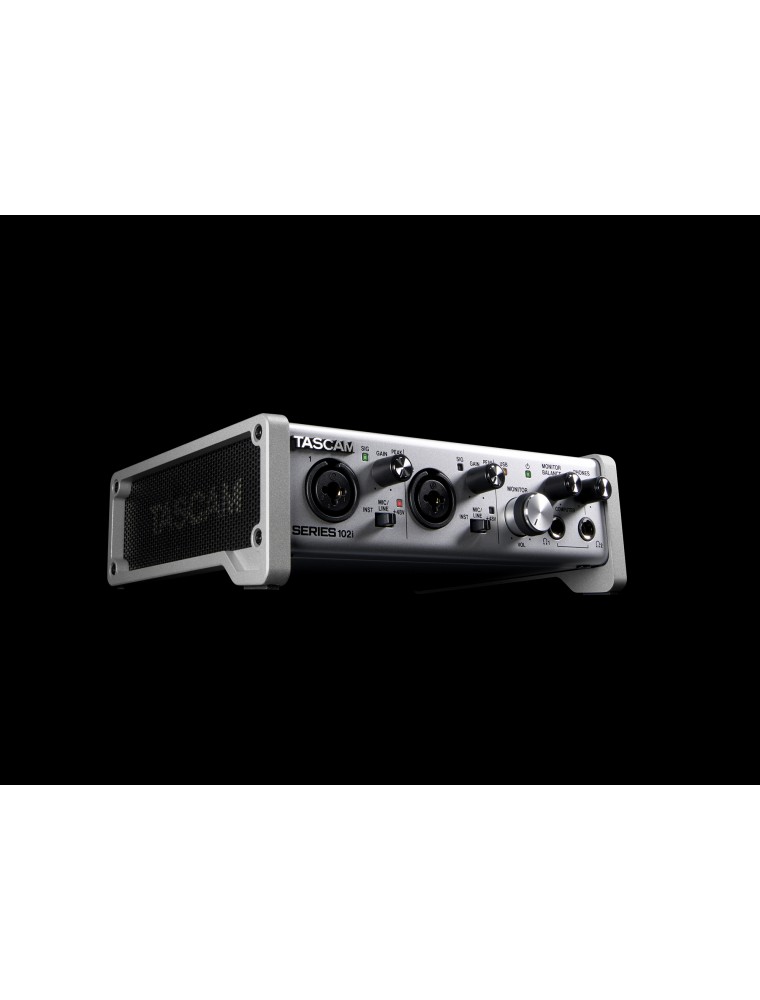

TASCAM SERIES 102i
TASCAM SERIES 102i
- Pengirim: Bliaudio-spr
- Asal Pengiriman: Jakarta Barat, DKI Jakarta
- Kode Produk: TASCAM SERIES 102i
- Tersedia: Dalam Stok
-
Rp 4.950.000
The new TASCAM SERIES audio interface family provides professional quality.
Expandability, both internal and bundled effects processing, internal mixing, external software control, and more for studio, home, and live recording. With a new look, including an angled tabletop design and large, easy-to-grab knobs, TASCAM sets a new standard for mid-grade audio interfaces.
Spec description
| Sampling Frequency | 44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz |
| Quantization Bit Rate | 16 / 24-bit |
| Analog Audio Inputs | |
| MIC IN (Balanced) | 1-2 (when the input switch is set to MIC/LINE) |
| Connector | XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) |
| Input Impedance | 1.5kΩ |
| Nominal Input Level | |
| GAIN: MAX | -64dBu (0.0005Vrms) |
| GAIN: MIN | -6dBu (0.388Vrms) |
| Maximum Input Level | +10dBu (2.45Vrms) |
| Gain Range | 58dB |
| INSTRUMENT IN (Unbalanced) | 1-2 (when the input switch is set to INST) |
| Connector | 1/4" (6.3mm) TS jack (Tip: HOT, Sleeve: GND) |
| Input Impedance | 1MΩ or more |
| Nominal Input Level | |
| GAIN: MAX | -64dBV (0.0006Vrms) |
| GAIN: MIN | -6dBV (0.501Vrms) |
| Maximum Input Level | +10dBV (3.162Vrms) |
| Gain Range | 58dB |
| LINE IN (Balanced) | 1-2 (when the input switch is set to MIC/LINE) |
| Connector | 1/4" (6.3mm) TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Input Impedance | 10kΩ |
| Nominal Input Level | |
| GAIN: MAX | -54dBu (0.0015Vrms) |
| GAIN: MIN | +4dBu (1.228Vrms) |
| Maximum Input Level | +24dBu (12.282Vrms) |
| Gain Range | 58dB |
| Digital Audio Inputs | |
| OPTICAL IN (S/MUX) | |
| Connector | OPTICAL (JEITA RC-5720C) |
| Signal Format | Multi-channel Optical Format (Supports S/MUX at 88.2k/96k/176.4k/192kHz) |

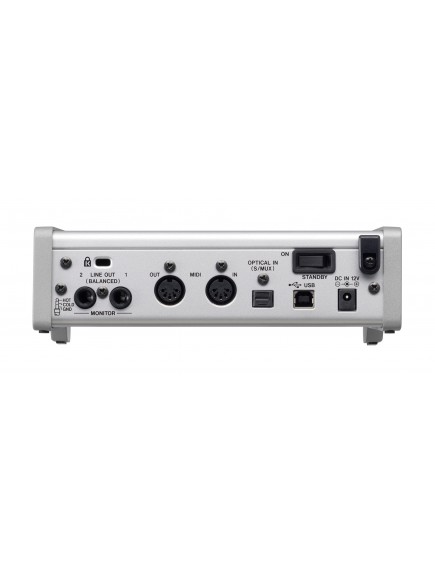

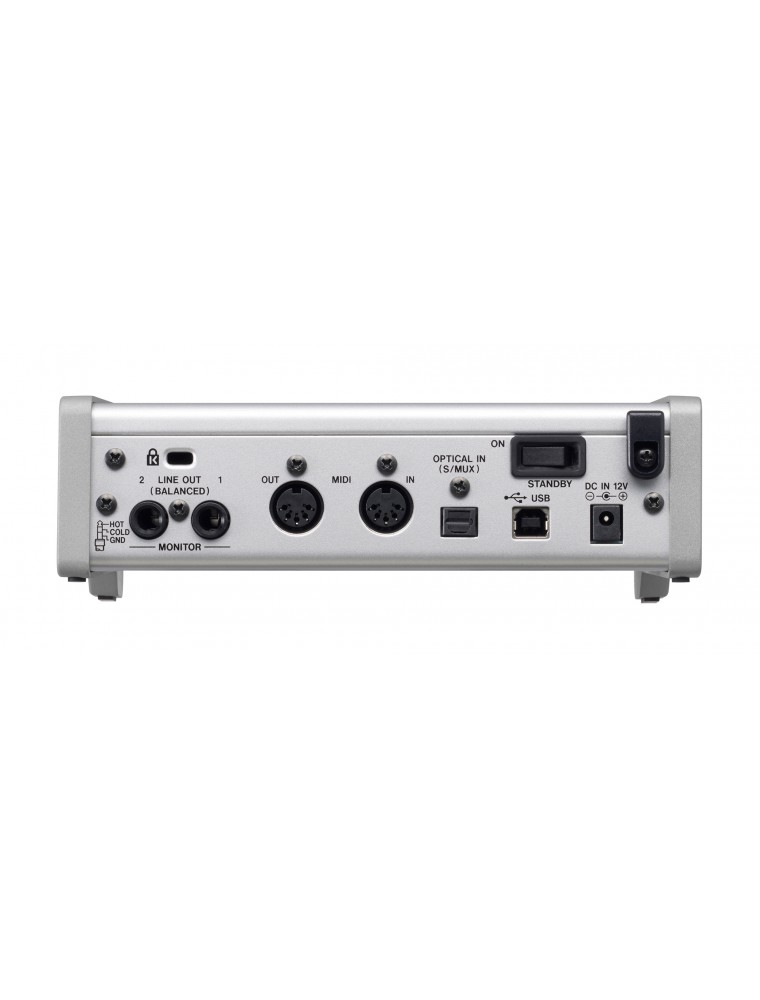

| Analog Audio Outputs | |
| MONITOR OUT (Balanced) | LINE OUT 1-2 |
| Connector | 1/4" (6.3mm) TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Output Impedance | 230Ω |
| Nominal Output Level | +4dBu (1.228Vrms) |
| Maximum Output Level | +20dBu (7.75Vrms) |
| HEADPHONE OUT | PHONES 1-2 |
| Connector | 1/4" (6.3mm) Stereo jack |
| Maximum Output Power | 18mW + 18mW (THD+N 0.1% or less, into 32Ω load) |
| Control Input/Output | |
| USB | |
| Connector | 4-pin, USB B type |
| Format | USB2.0 HIGH SPEED (480Mbps) |
| MIDI IN | |
| Connector | 5-pin, DIN |
| Format | Standard MIDI |
| MIDI OUT | |
| Connector | 5-pin, DIN |
| Format | Standard MIDI |
| Power | DC 12V (AC Adapter PS-P1220E included) |
| Power Consumption | 7.2 W |
| Dimensions (W×H×D) | 186 × 65 × 160 mm |
| Weight | 1.1 kg |
| Operating Temperature Range | 5 to 35°C |
Audio Performance
| Mic Amp EIN | -129dBu or lower |
| Frequency Response | |
| Fs 44.1k/48kHz | 20Hz to 20kHz, +0/-0.4dB (JEITA) |
| Fs 88.2k/96kHz | 20Hz to 40kHz, +0/-0.8dB (JEITA) |
| Total Harmonic Distortion | |
| MIC IN | 0.0016% (1kHz sine wave, GAIN knob at minimum, 20k SPCL LPF) |
| LINE IN | 0.0023% (1kHz sine wave, GAIN knob at minimum, 20k SPCL LPF) |
| Signal-to-Noise Ratio | |
| MIC/LINE IN | 109dB (GAIN knob at minimum, 20k SPCL LPF+A-Weight) |
| Crosstalk | 100dB or higher (MIC/LINE IN thru LINE OUT, 1kHz sine wave, Gain knob at minimum) |
Computer System Requirements
Windows
| Compatible Computers | Windows computer with a USB2.0 or USB3.0 |
| CPU | Dual core (x86), 2GHz or faster |
| Memory | 2GB or more |
| Driver | USB Audio Class2.0, ASIO2.2 , WDM (MME), MIDI |
Macintosh
| Compatible Computers | Macintosh computer with a USB2.0 or USB3.0 |
| CPU | Dual core, 2GHz or faster |
| Memory | 2GB or more |
| Driver | Core Audio, Core MIDI |
iOS
| Driver | Core Audio for iPhone |
