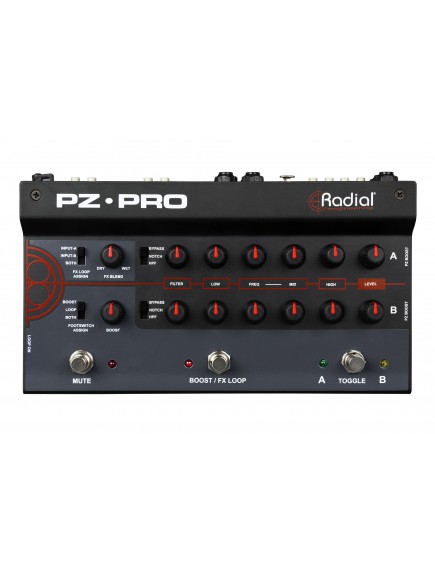

RADIAL PZ PRO 2-Channel Acoustic Instrumental Preamp
RADIAL PZ PRO 2-Channel Acoustic Instrumental Preamp
- Pengirim: Bliaudio-skr
- Asal Pengiriman: Jakarta Utara, DKI Jakarta
- Kode Produk: RADIAL PZ PRO 2-Channel Acoustic Instrumental Preamp
- Tersedia: Dalam Stok
-
Rp 10.816.000
Take complete control over your tone, EQ settings, and effects with the PZ-Pro, a two channel instrument preamp, DI and switcher. Each channel features a separate equalizer strip complete with a filter section to reduce feedback on stage. The second channel of the PZ-Pro also features a microphone input to allow any dynamic or condenser microphone to be used, including clip-on instrument mics. Three footswitches provide the ability to toggle between each input channel, activate a built-in booster and an effects loop, or mute the signal for silent tuning on stage.
| Specifications | ||
|---|---|---|
| Audio circuit type: | Proprietary active circuit | |
| Number of channels: | 2x Inputs, Mono Pre and Post EQ XLR balanced Out | |
| Frequency response: | 20Hz-20kHz (+/-0.5dB) | |
| Gain: | +20dB (Instrument Input), +55dB (Mic Input) | |
| Clip Level: | +10dBu @ XLR output | |
| Total harmonic distortion: | <0.005% @ 1kHz | |
| Input Impedance: | 220k Ohm at input jack (10meg Ohm when PZ Boost active) | |
| Output Impedance: | 1k Ohm | |
| Noise: | -91dB | |
| Features | ||
| 180° polarity reverse, Ground lift, Effects Loop, EQ Control, Boost | ||
| Input Connectors: | 1/4" instrument, XLR microphone | |
| Output Connectors: | Pre and Post EQ XLR, 1/4" Amp out | |
| Extras: | 1/4" Effects Loop, Boost, Tuner | |
| General | ||
| Construction: | 14-gauge steel | |
| Weight: | 5.0lbs (2.27kg) | |
| Shipping size (L x W x D): | 9.10"l x 5.32"w x 1.82"h (231 x 135 x 46mm) | |
| Power: | 15VDC 400mA, center-pin positive | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
